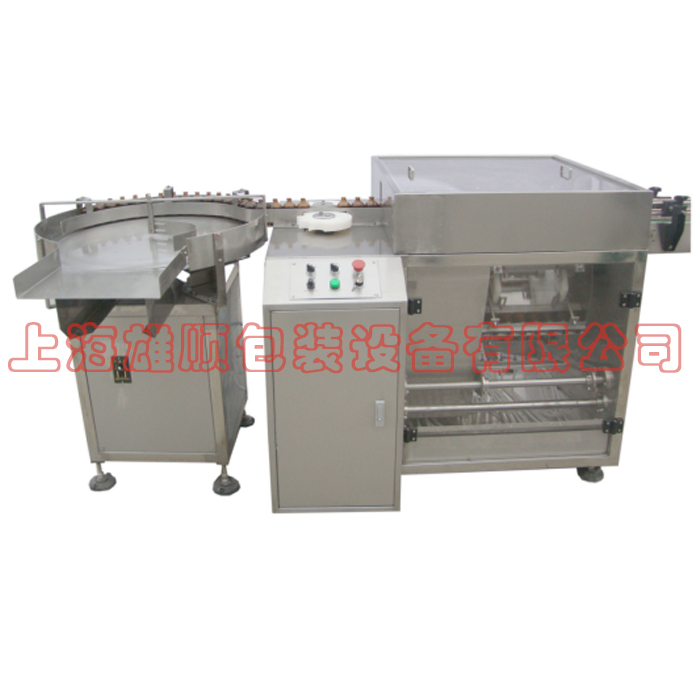

XS-GX2 Cylinder type Ultrasonic washing machine:

Yield capacity: 80-120 pcs/min

Working procedure: used for glass bottle, can be connect with the filling machine, can make the washing-filling-stoppering procedure go on automatically. The bottle to be wash is transferred by turn poker, and goes in to the cylinder intermittently,  firstly, the ultrasonic device  forming the cavitation on the interface between the water and bottle ,then was by tap water, purified water and compressed air in turn, the  after finishing the washing, the bottle goes into the next procedure.

Ultrasonic device forming the cavitation---first spraying---second spraying---compressed air spray[all the washing processing exert on the inner surface of the bottle, the air come from the user site]

Power：  1.5KW

Power supply：  380V

Water consumption：  0.6~1t/h

Compressed air consumption：  15m³/h,0.3~0.4kg/cm²

Outside dimension：  1380×900×1350

Main component

The surrounding plate and the parts contacted with water and bottle is imported good quality SUS 304/2B

Ultrasonic generator: GANGXING, ZHANGJIAGANG [ISO 9000 verified]

Fittings, pressure gauge: from shanghai

Button: Schneider

Speed reducer: GOLDGUN, shanghai

Air switch: Schneider

Inverter: ,      Japan

AC contactor: Schneider

The main motor：ABB
