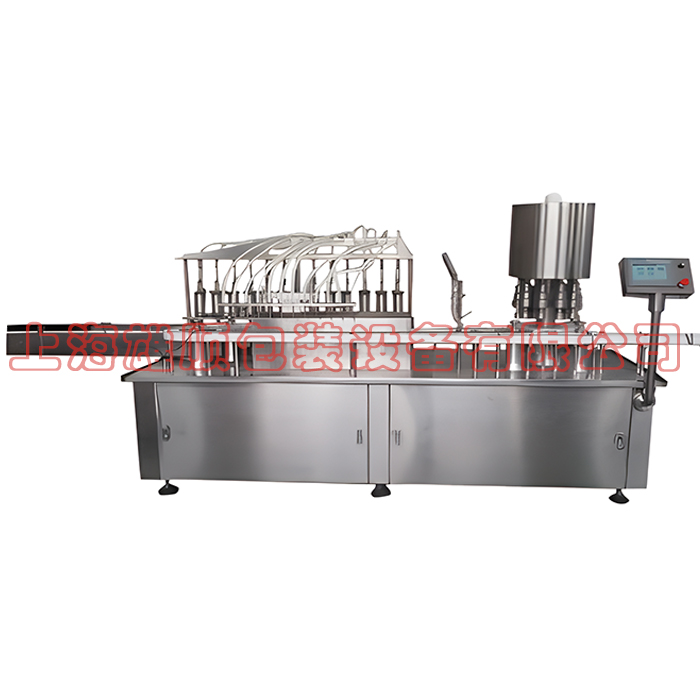

1、XS-GYGX High-speed automatic liquid filling plugging,capping machine:

Photos are for reference only！

This machine integrates the functions of liquid filling, top plug, rotary cap (cap), automatic filling, plug, cover, bottle out and so on. The running of the machine is smooth, the performance is stable, the measurement precision is high, and it conforms to GMP requirements.

Produce capacity：    30-70b/m

Filling heads：    4heads filling

Filling mode: peristaltic pump filling

Filling range：    2-20ml(Depending on the bottle provided by the customer）

Filling  accuracy ：   ±1%

Capping heads：   2 heads capping

Capping rate：    ≥98%

Speed control: frequency conversion speed regulation

Power supply：    380V  50Hz

Power：    2kw

Weight：   750Kg

Outline dimension：    2000×950×1700mm
