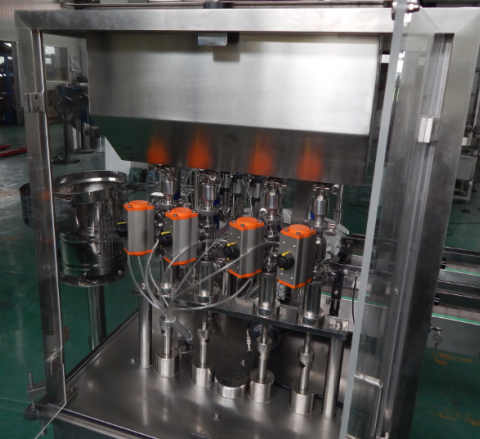

High speed double rail high viscosity filling line

Cylinder drive

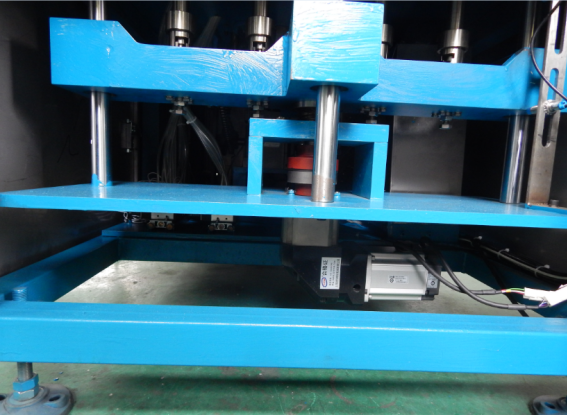

Servo motor drive

Technical parameter:

1、Double track high-speed filling machine:

Yield capacity:     60-100pcs/min

Filling station   8stations

Applied for   20-100ml

Filling tolerance  ±1%

Speed control: by inverter

power supply: 380V  50Hz

Total power  2KW

Outside dimension: 1100×850×1500mm

Main component:

The table and surrounding plat is imported good quality SUS 304/2B、And material contact part is 316 L quality stainless steel

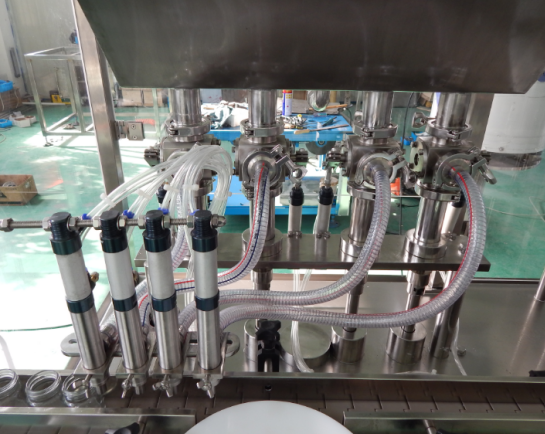

Filling needle:    316L

Filling pump:     316L

Speed reducer: Goldgun, shanghai

Cam index: Shangdong

Inverter:    Japan  mitsubishi

Button: Schneider

Air switch: Schneider

AC contactor: Schneider

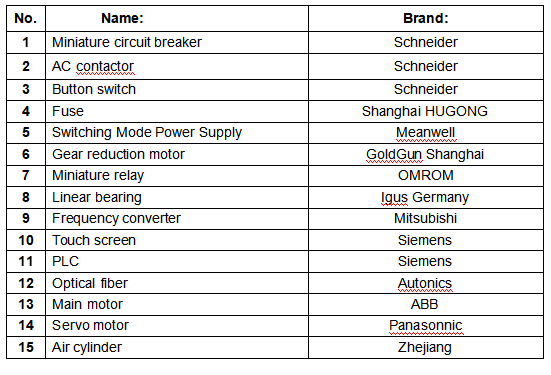

Main configuration:
