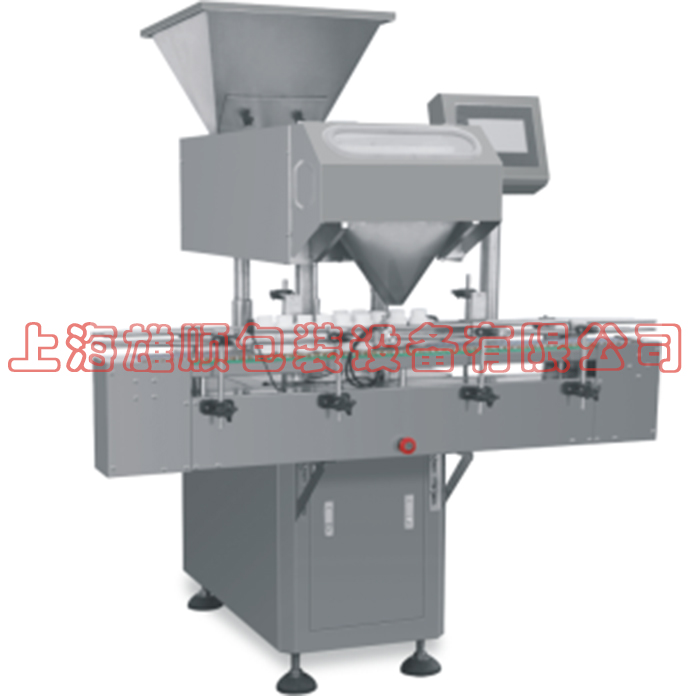

GS-12 Electronic counting machine:

Working principle

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in.The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate.There’s a counting photoelectric sensor installed on the medicine container,after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes

into the bottle in the bottling position.

Main features

1）Strong compatibility,It can count and bottle various kind of solid preparation or sol solid granules for example,tablet (including heteromorphism tablet)、capsule、soft c apsule（ transparent and non-transparent）、pill etc.

2）Vibration cutting: 12 channel vibration under homogeneous materials, unique patent agencies blanking, turning out material is steady, not damage

3) Anti high dust :Adopting the anti high dust photoelectric sensing technology only developed by our company ,it also can work stably under the high dust circumstance.

4） Correct counting :With automatic photoelectric sensor counting ,the error of bottling is less than nation standard.

5 )Special structure of the discharge spout, can prevent blocking drugs, small bottle can fast bottling (optional)

6 ) High intelligence :It has various alarm and control functions like no bottle no count,check fault automatically and so on.

7 )Auxiliary function :Photoelectric sensor can check automatically if there’s no bottle and stops automatically.

8 )Easy operation :Adopting intellectualized design, all kinds of operation data can beset according to the requirement .It can store 10 groups of setting parameters for use.

9 )Convenient maintenance :After simple training, the worker can operate easily.It is easy to disassembly, clean and change the components without any tools.

10）Sealing and dustproof :Dust collection box is available, it can reduce the dust pollution. (Optional)

GS-12 Electronic Counting machine(Wide road three)

Applicable bottle shape :round、square plastic bottle Filling material: Φ0~5#capsule、soft capsule、Φ5.5～12compressed tablet、special-shaped tablet、sugarcoated tablet，Φ3～12pill

Production capacity： 20～50 bottles per minute(It depends on the bottle size、filling quantity and the tablet size)

The setting range of bottling volume：1—9999

Power supply：AC220V 50Hz 0.6kw

Accuracy rate:＞99.5%(higher than the industrial standard )

Air pressure：0.6Mpa

Overall dimension：1500×1500×1660mm

Weight：320kg
