GS-16 High speed counting machine:

This machine is widely used in many industries such as foodstuff, medicine, chemical industry, and commodity for counting and filling the troche, pill and capsule.

Technical Parameter:

The mode of vibration: Sixteen channels working at the same time, fast speed

High accuracy: (error ≤1‰)

Working smoothly and low noise

Working continuously, When changing the bottles without pause.

Suitable for all kinds of specifications, shape and size of the granular objects (pills) packaging.

Dual roads for offering bottles, ensure rapid filling without blocking bottles.

Intelligent design, has self-checking system, troubleshooting tips, alarm, shutdown, and other functions, simple operation, safe and reliable.

Seal dustproof, easy to remove and cleaning, in line with the GMP requirements.

Speed: 3000-6000granule/min, can adjustment

Range: 20-9999granule/min, can adjustment

The size of the bottle: Inner diameter above 25 mm     bottle diameter 35-60 mm (Special specification can custom-tailor)

Power: 500W

Voltage: AC220V 50-60Hz

Dimension: 1600×1420×1500 mm

Weight: 200Kg

Loading direction: Left→Right

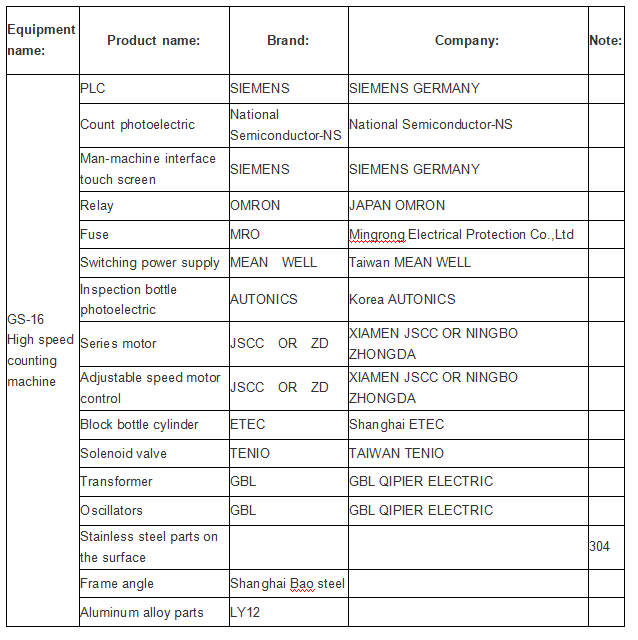

GS-16 High speed counting machine main configuration table:
