Spray filling rotary cap machine is suitable for filling 5-20ml plastic bottle or glass bottle spray dosage form, upper valve (outer cap), rotary pump operation. Can meet the pharmaceutical, daily chemical and other industry batch production needs. Straight-line and right-angle rotary two types of models, can meet the needs of different production sites. Fast card stainless steel pump (peristaltic pump, ceramic pump optional) filling, electromagnetic oscillator automatic valve (outer cap), double cylinder positioning valve (outer cover), constant torque rotary pump (outer cap), pneumatic protection device to ensure seal sealing. Can be realized without bottle filling, and automatic culling device, easy to operate, easy to replace specifications.

Characteristic：

1：High-precision cam indexing machine provides indexing to complete dial, positioning, upper cover. Finish the lifting work of the Rotary cover head by the Afterglare acceleration Cam Transmission Mechanism.

2：The utility model has the function of no bottle filling and no capping. The upper cover of the manipulator is used, the positioning is accurate, the transmission is stable, the protective lid is accurate, the measurement is accurate, the operation is simple, etc.

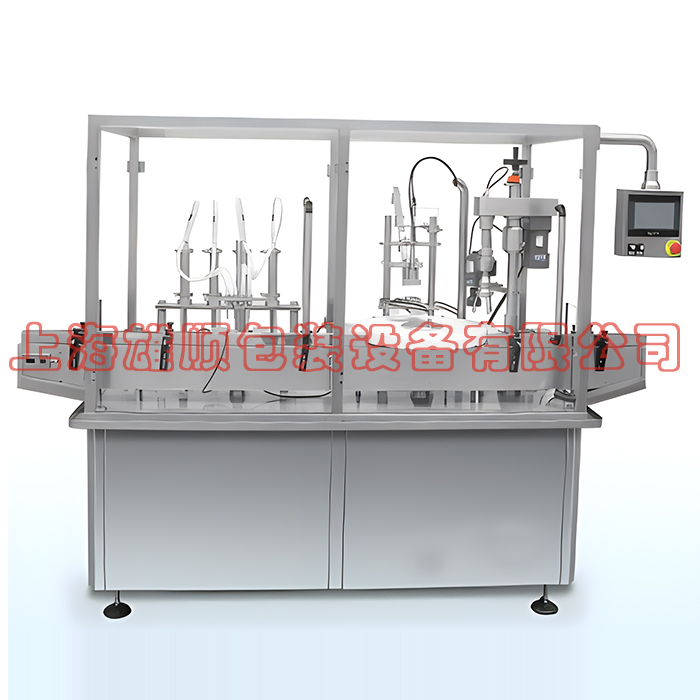

Pictures for reference only

Produce capacity：  20-40b/m

Suitable bottle：20—100mL Round plastic bottle

Filling method: piston pump filling

Filling heads: double heads

Measuring accuracy ：  ±1.2 %

Capping rate: ≥99.9%

Capping head: single head

Press capping head: single head

Power：2.2kw

Power supply：380V  50Hz

Gas source：0.3~0.6kfg/_cm²

Gas consumption：15~20_m³/h

Outline dimension： 2400×1300×1700

Main configuration：

Table, side plates are imported 304 / 2B stainless steel, contact with the solution 316L stainless steel

Filling needle material: 316L stainless steel

Main motor: Shanghai

Conveying motor: Wan Xin, Taiwan

Rotary cap motor: Wan Xin, Taiwan

Cam indexer: Zhucheng, Shandong，MXH83-6，1pcs

Worm gear reducer: Shanghai Golden Gun，WPS60,1pcs

Liquid transfer pipe: imported silicone tube

Optical fiber eye：     Autonicis,

Frequency converter：    Taiwan Delta        FR-SS20SE，1pcs

Cylinder: AirTAC, Taiwan，    MA20×50-S-CA，2个

Turntable: UHMWPE (Korea)

vacuum pump：     Taiwan Delta            1Pcs

Programming controller: Delta              24  point PLC   1Pcs

Touch screen: Delta               7 inches       1Pcs

AC contactor ：  AirTAC                   3TB4022-OX，2pcs

Relay：   AirTAC                    3TB3022， 2pcs

Air switch：   AirTAC DZ43-63， 3pcs

Shaft bearing 1：  Igs, Germany RWS1711-SNT，  6Pcs

Shaft bearing 2：  Japan                       NSK，10Pcs

Electric magnetic valve：   AirTAC, Taiwan (for cylinders)      4V210-8    2Pcs

Throttle valve：    AirTAC, Taiwan (for cylinders)       JSC-6，    4Pcs

Rotary cap mechanism：

The screw cap mechanism adopts constant torsion force design, according to the tightness of bottle cap and bottle mouth thread to adjust the torsion force, when the screw cap is in place, it can slide automatically, and the rotary cap head sleeve adopts imported silica gel material to achieve the purpose of not hurting the cap and not harming the bottle.

★Emergency stop device：    Schneider AR22VAR，   1Pcs
