Welcome to Shanghai Xiongshun Packing Equipment Co.,Ltd.

XG-200A High speed capping machine:

This machine is suitable for various specifications bottles for automatic screw capping (according to customers' requirement to customize the press-capping machine).

Brief introduction:

.Automatic manage caps,drop caps, easy to operate.

·Inlet the bottles straightly, continuous screw capping, efficient and convenient.

·Friction type screw capping, rotary conveyor caps, no vibration, no noise.

·Fault automatic stop system,without caps automatic stop system, more secure.

Technical parameters:

1、Model：XG-200A

2、Produce capacity：≤150bottles/minute

3、Cap size：15～70mm

4、Bottle body diameter：￠35～￠140mm

5、Bottle body height：38～300mm

6、Working pressure：3～5Kg/cm²

7、Equipment weight：650Kg

8、Machine size：2000×870×1500mm

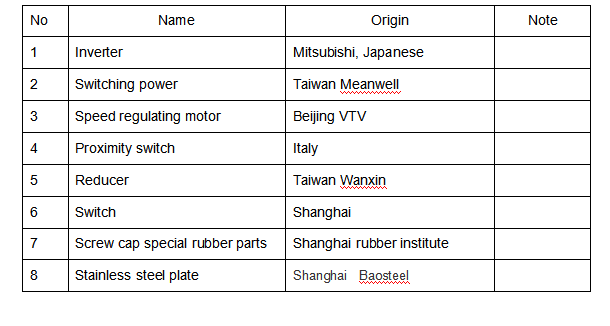

Main configuration table:
