SC-360B Automatic double side and round bottle labeling machine:

Capability and Characteristic：

It is widely used in many industries such as foodstuff, medicine and commodity.

Technical parameters:

Front-back labeling, easy and efficient (front-back and side labeling)

Suitable for large range and easy to adjustment

Suitable for round bottles, tabular bottles, rectangle and squareness bottles

Human-machine operate panel, easy to operate

Frequency conversion and speed adjustment, orientation accuracy

It can equip with printing coding machine, the printing clear and fastness

Scope of application:

Applicable label:Self-adhesive label, self-adhesive film, electronic regulatory code, bar code, etc. Applicable products: products that require labels or films to be affixed to flat and large radian.

Application: widely used in printing, stationery, food, daily chemical, electronics, medicine, and other industries.

Application example: book flat label, folder label, packing box label, plate label, etc.

 Working process:

The sensor detects the product passing, sends the signal back to the label control system, after the signal is processed by PLC, sends out the label affixed to the product setting position at the appropriate time, the product flows through the covering label device, the label is firmly covered, and the attachment action of a label is completed.

Operate process：Release product (can be connected to the assembly line)—>Product delivery

(automatic realization)—>Product correction (automatic implementation)—>Product testing (automatic implementation)—>Label (automatic implementation)—>Cover labeling (automatic implementation)—>Collect labeled products.

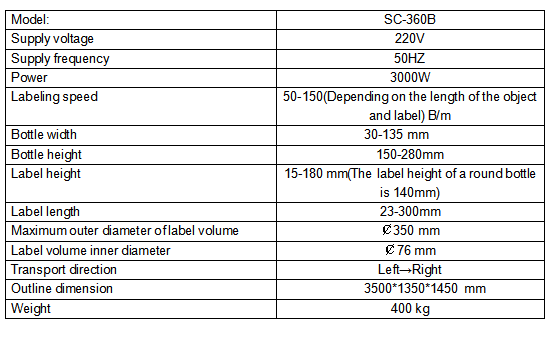

Technical parameter:
