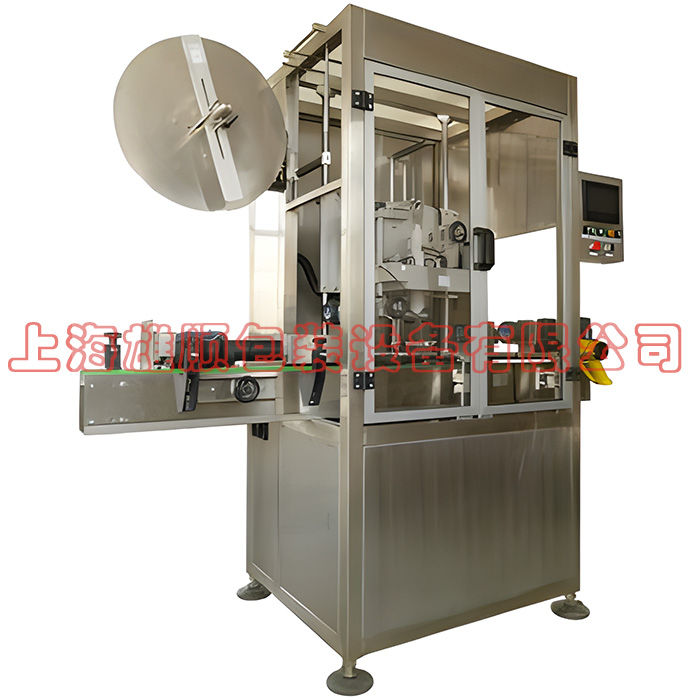

XS-H150 Fully automatic sleeve labeling machine:

Characteristic(s)：

New integrated stainless steel frame: solid, safe, beautiful, waterproof and not embroidered.

Replacement bottle type: the new type of machine head size is 2 times larger than the previous model, changes the product faster, does not need to adjust many times to test, faster and more convenient, can adapt to many kinds of bottle type at the same time.

Electrical control: use imported servo motor to cut, send, label, label positioning accurate synchronization, stable and reliable.

New feeding mechanism, no label, stable, direct and intuitive, improve label replacement time.

The steam generator has large tank and stable gas production.

Unique design of electrothermal shrink furnace, complete closed furnace does not waste heat and does not spread, shrinkage can reach perfection.

Note: this is a standard model specification, can be designed according to customer requirements, labels can be covered bottle body, bottle mouth and the whole body.

Technical parameter：

     1.Size（L*W*H）：Sleeve labeling machine:2000x850x2000（mm）

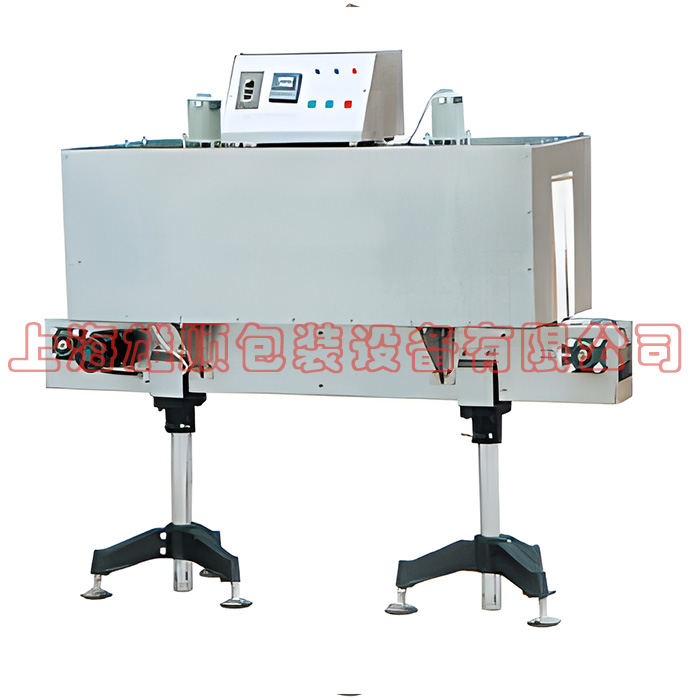

                                Shrinkage tunnel:1500x400x1800（mm）

2. Weight：sleeve labeling machine≥200Kg;

            Shrinkage tunnel≥100Kg

3.Cutter diameter range：ψ35-95（mm）or ψ65-130（mm）。

4.Bottle height：15-350（mm）。

5.Suitable for bottle type: round bottle or custom-made according to customer sample bottle.

6.Applicable label length： 15 -220mm。

7.Applicable label thickness: ≥ 2.8 wire (see the beauty of label after contraction).

8.Degree of automation: automatic no personnel on duty.

9.Production speed: 10-150 bottles / min.

10.Power: 2.1KW retractor 0.2KW generator 18KW power source: 3 phase AC 380V50HZ。
